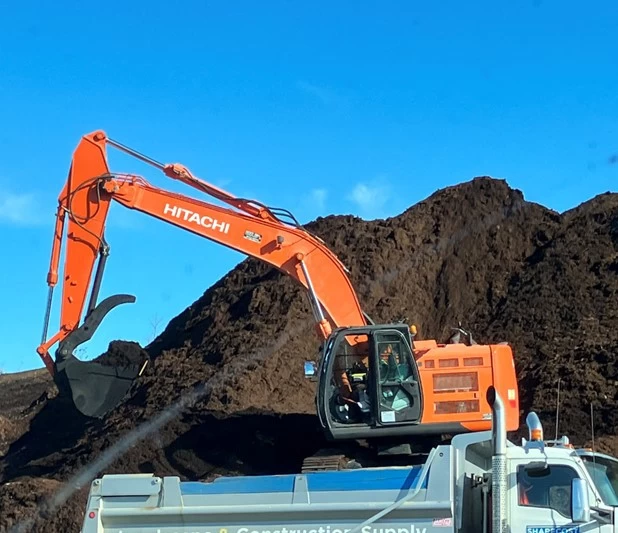

Excavator, MID-SIZE, Hitachi 25 Tonne

Dimensions:

Shipping Length: 29.11ft (8,870mm)
Max Cutting Height: 31.5ft (9,600mm)
Shipping Height: 9.75ft (2,970mm)
Max Loading Height: 22.25ft (6,780mm)
Max Reach Along Ground: 31.99ft (9,750mm)
Max Vertical Wall Digging Depth: 19.85ft (6,050mm)
Max Digging Depth: 21.89ft (6,670mm)
Boom/Stick Option (Hex) 2: boom 18.64ft (5,680mm) w/ stick 9.55ft (2,910mm)
Ground Clearance: 1.48ft (450mm)
Height To Top Of Cab: 9.68ft (2,950mm)
Width To Outside Of Tracks: 9.19ft (2,800mm)
Length Of Track On Ground: 11.06ft (3,370mm)
Tail Swing Radius: 6.53ft (1,990mm)
Removal Counterweight Clearance: 3.35ft / 1020mm

Undercarriage:

Track Gauge: 7.22ft (2,200mm)
Shoe Size: 23.63in (600mm)
Number Of Track Rollers Per Side: 7
Number Of Carrier Rollers Per Side: 2
Max Travel Speed: 3.3mph (5.3kph)
Ground Pressure: 7.11psi (49kPa)

Specifications:

Engine Number Of Cylinders: 6
Engine Make: 2353
Engine Model: AA-6BGIT
Net Power: 147hp (109.7kw)
Max Torque: 405.7ftlb (550Nm)

DO NOT run machine on hard shot/blasted rock – this will damage the rubber wheels.

(1) Customer accepts the responsibility for: damage to machine and/or flat tires/tracks; repairs; and all liability which may occur as a result of injury to persons or property during rental beyond normal wear and tear.
(2) Check for buried cable or gas lines before you dig.
(3) Maximum allowance of 8 hours per 24-hour period. Additional engine hours are billed at $115 per hour over the maximum allowance per 24-hour period.
(4) After the machine is on site for 25 hours a second day rate will be charged with an additional 8 hours of engine time allowed.
(5) Up to 160 hours of engine time is included per monthly rate. Machine can be on site for up to 28 days for month rate. Additional engine hours are billed at $85 per hour over the maximum allowance per 28-day period.
(6) Monthly rate is on a quote basis and is calendar month day to day.
(7) Grease gun, bucket wrench is located in the cab. Please grease excavator every eight hours of use: see diagram where grease nipple locations are for multi-day use of excavator.

PLEASE CALL US for equipment pick-up.
